Building Signage Installation: Method Statement & Crew Highlights

For professionals interested in building signage installation in the Philippines, this is a must-read. Audience: Architects • Developers • Project Managers • Engineers

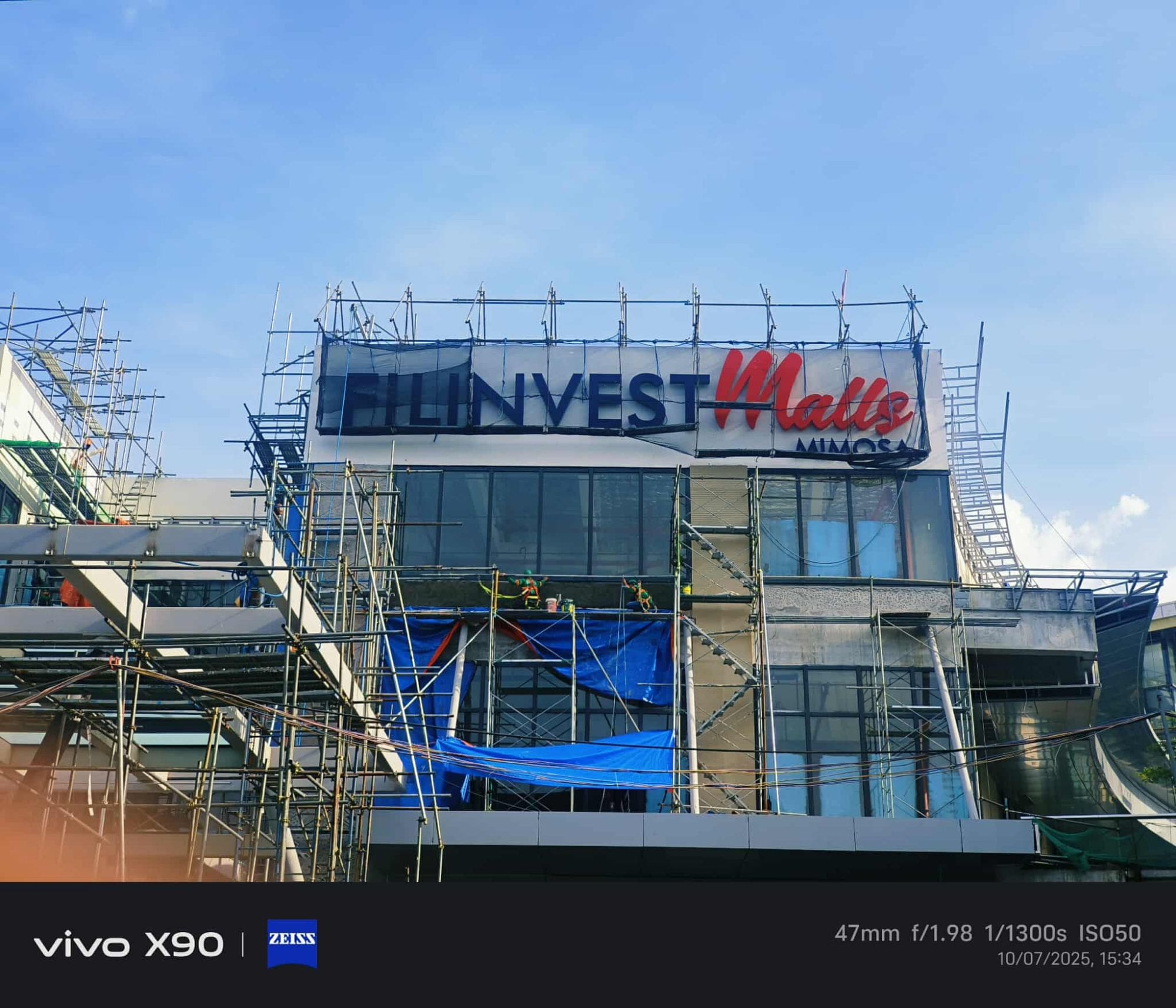

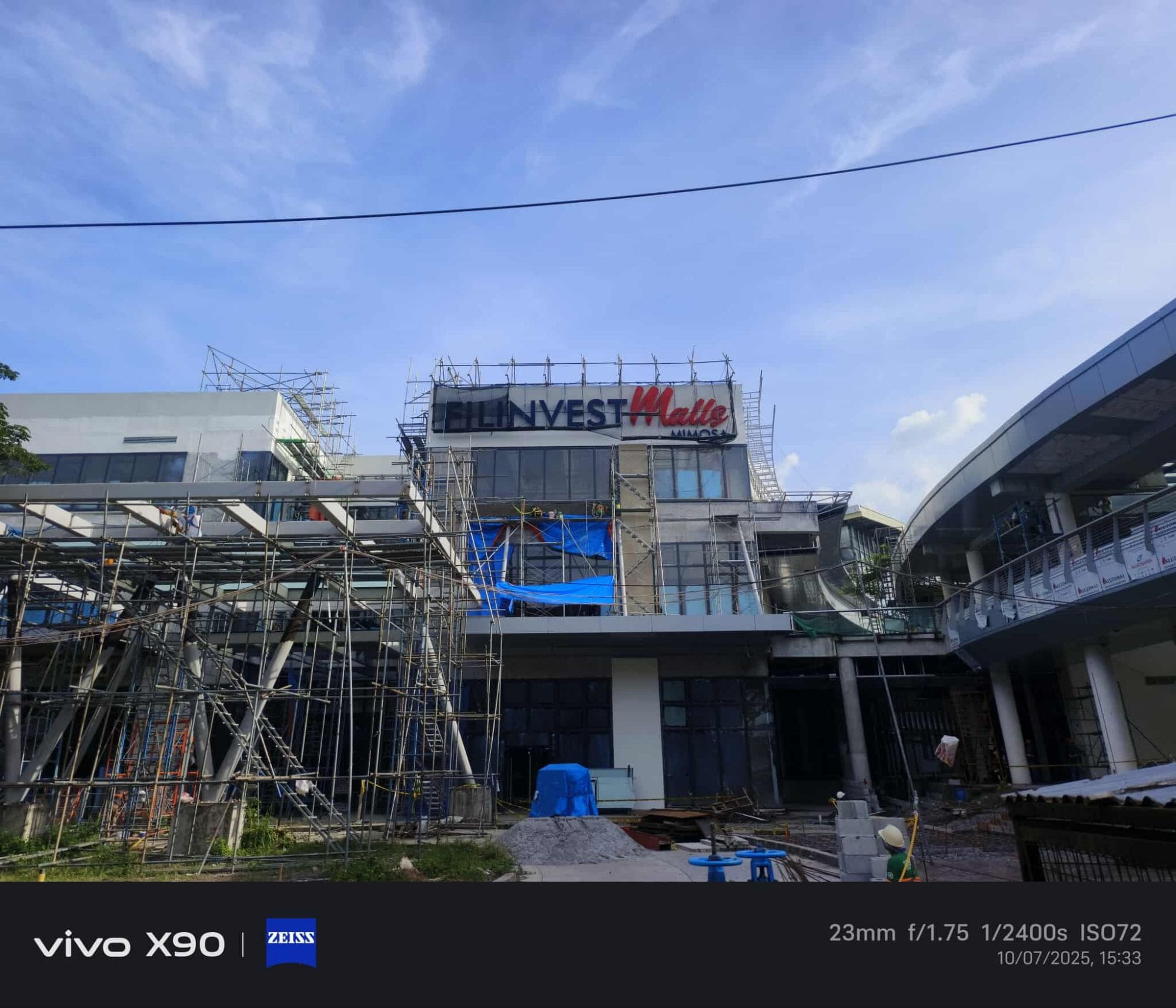

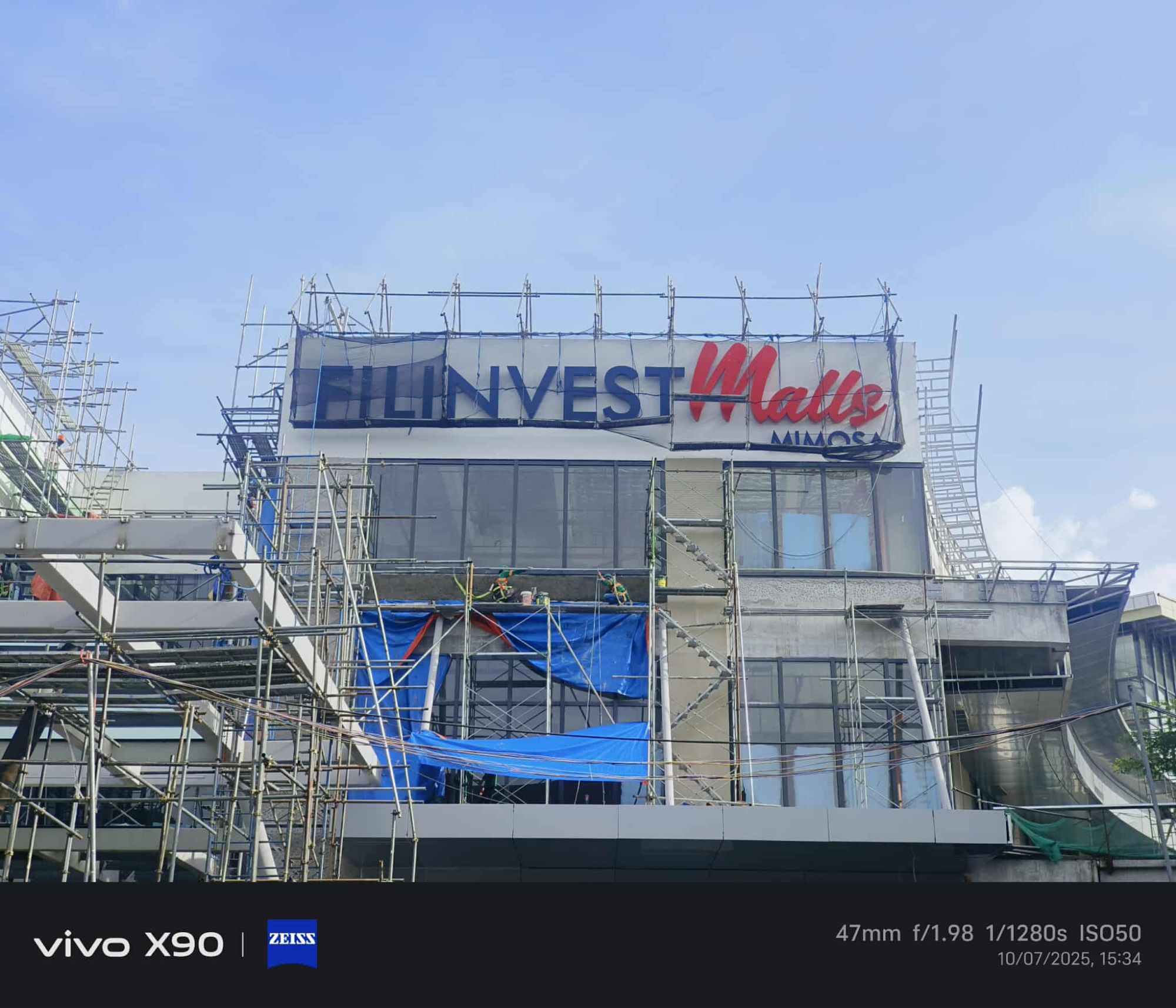

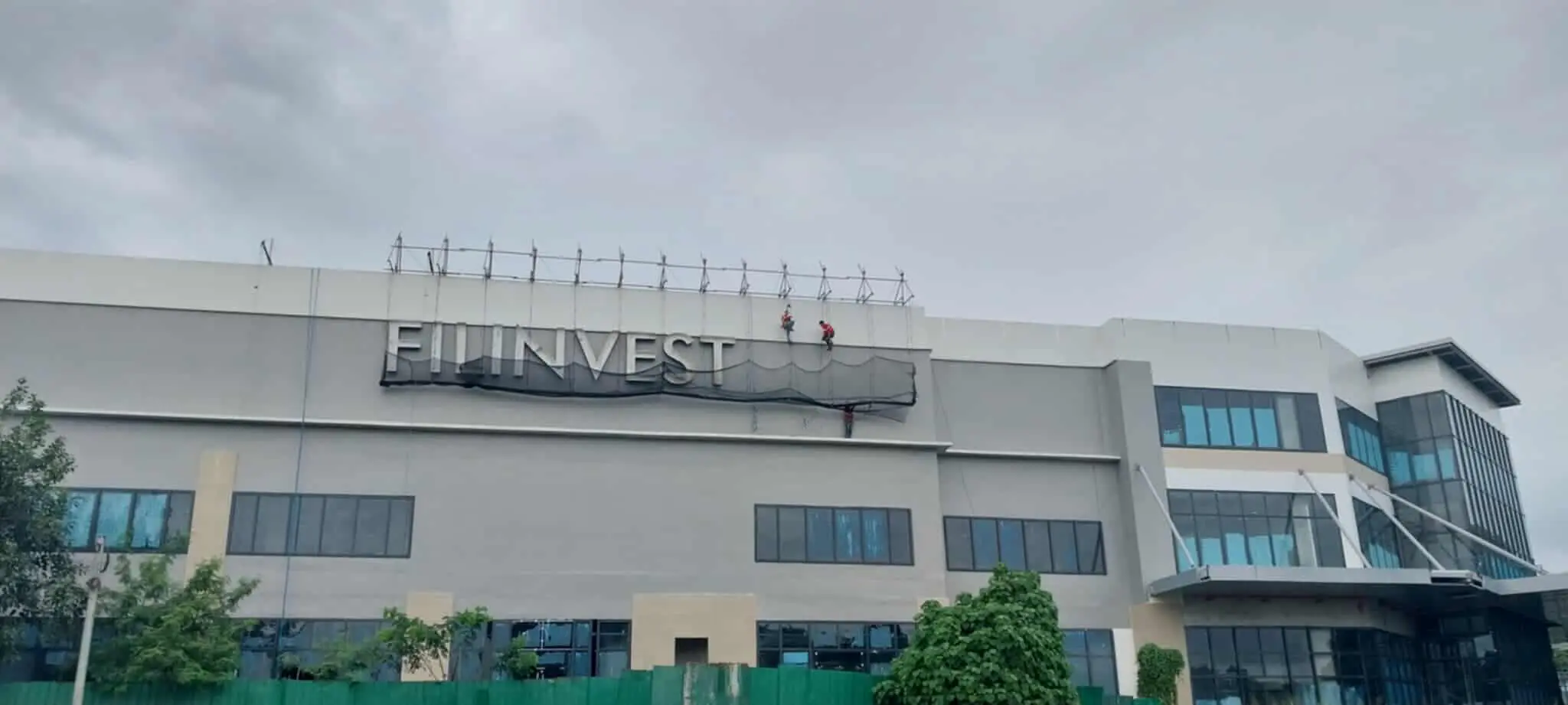

Scope: Large-format channel-letter façade signage with LED illumination, mounted on a parapet using a fabricated suspended clamp system.

---

1) Pre-Construction & Engineering

1. Kickoff & Constraints
   • Obtain elevations, wind-load category, parapet details, power source location, access limits.
   • Confirm work windows to avoid tenant disruption.
2. Structural & Access Design
   • Design fabricated suspended clamp + GI brace members to avoid roof penetrations.
   • Factor of Safety ≥ 4:1 for all suspended members; verify parapet load path.
3. HSE Documentation
   • JSA/TRA, Method of Statement, Fall-Protection Plan, Hot-work & LOTO where required.
   • Weather thresholds: cease work ≥30 km/h sustained wind or lightning within 10 km.
4. Mock-ups & FAT
   • Channel-letter sample (aluminum returns, acrylic faces, LED pitch, PSU spec).
   • Illumination uniformity check (cd/m²) and color temp match.

---

2) Fabrication & QA

• Letters: Aluminum returns, powder-coated; 4.5–6 mm acrylic faces with trim cap.
• LED: 12/24V modules, IP67; drivers sized @80% load with surge protection.
• Frames: Hot-dip galvanized steel/aluminum rails; slotted for tolerance.
• QC: Dimensional check, fastener torque specs, cable labeling, 8-hour burn-in.

---

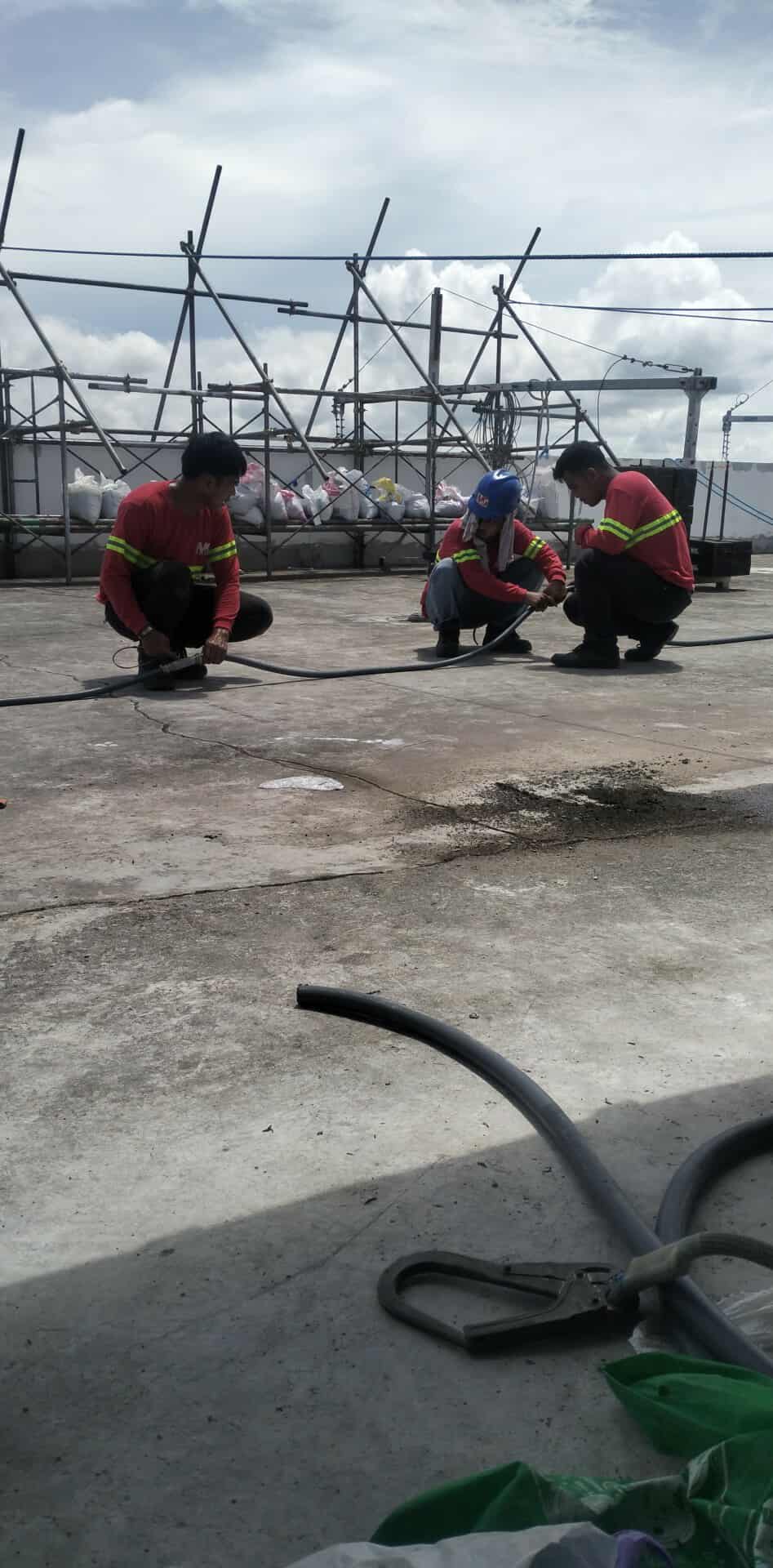

3) Site Mobilization

• Crew: Supervisor, rigger, lead fabricator, electricians, installers (IRATA/L3 oversight if rope access), banksman.

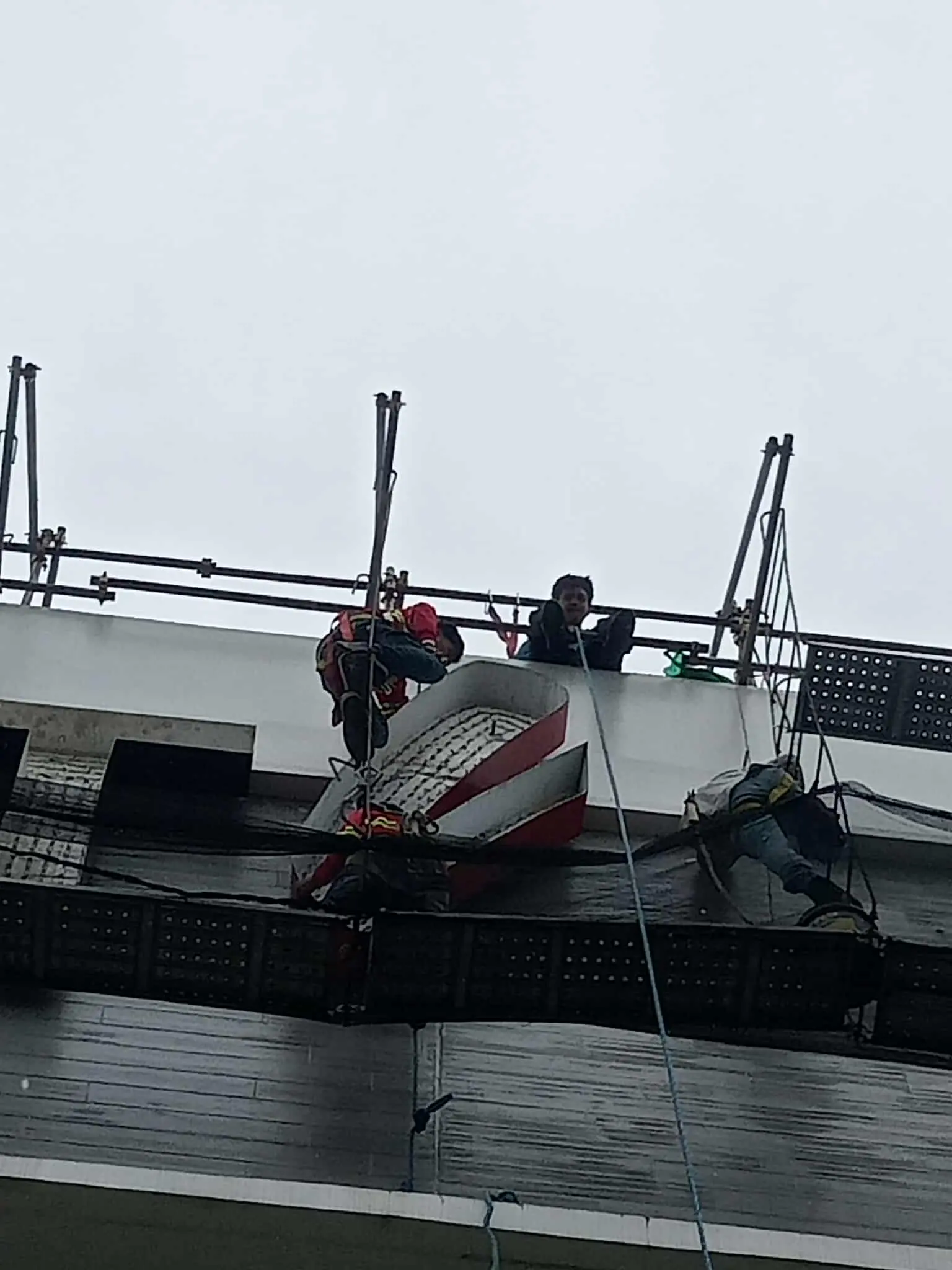

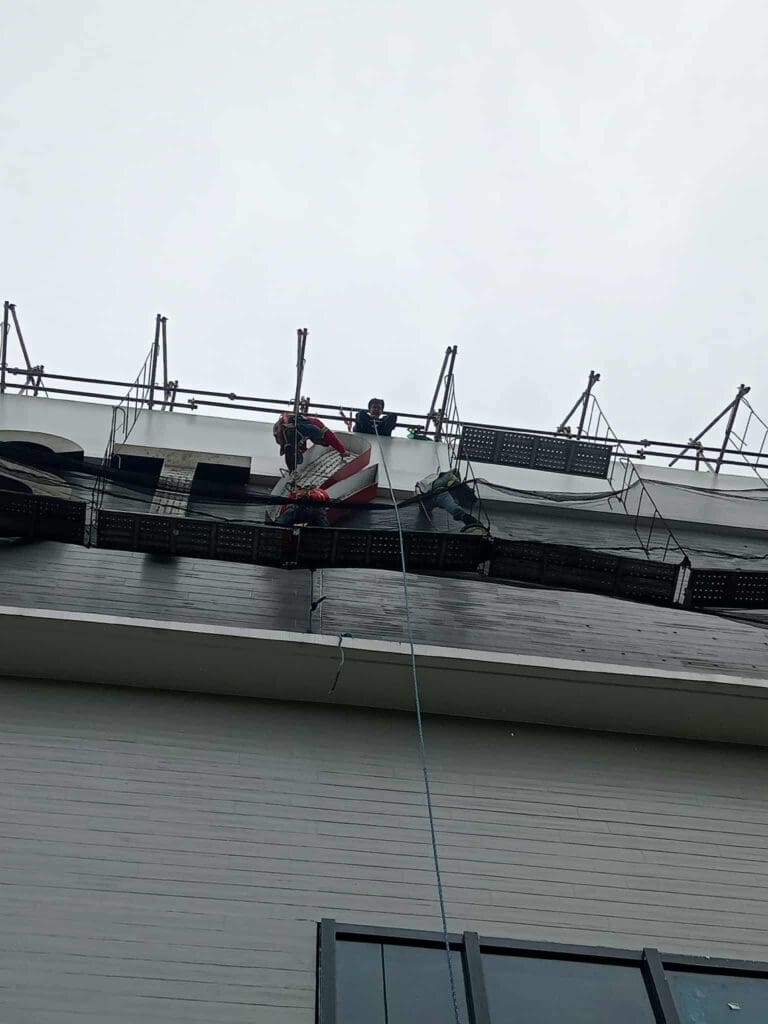

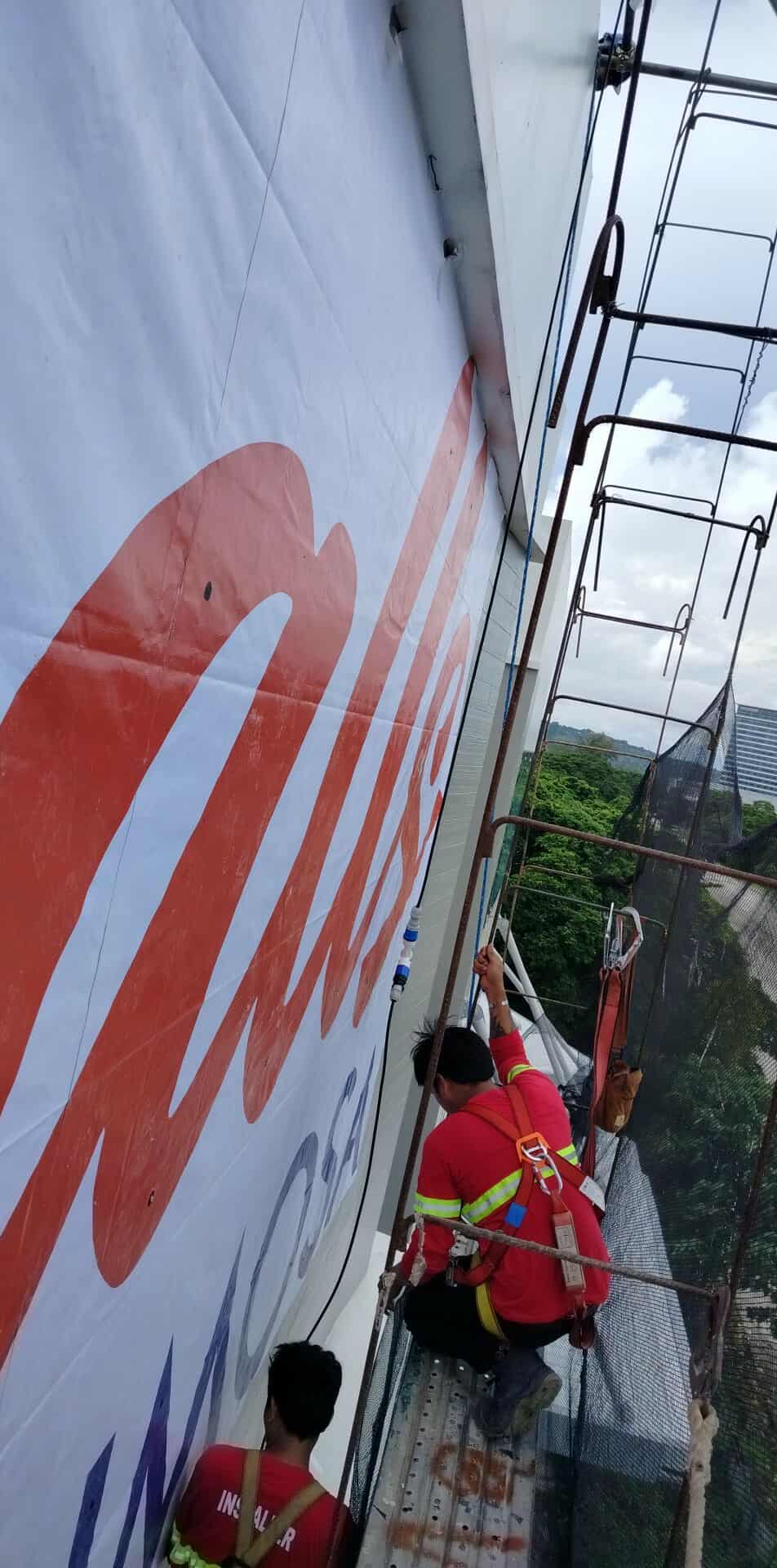

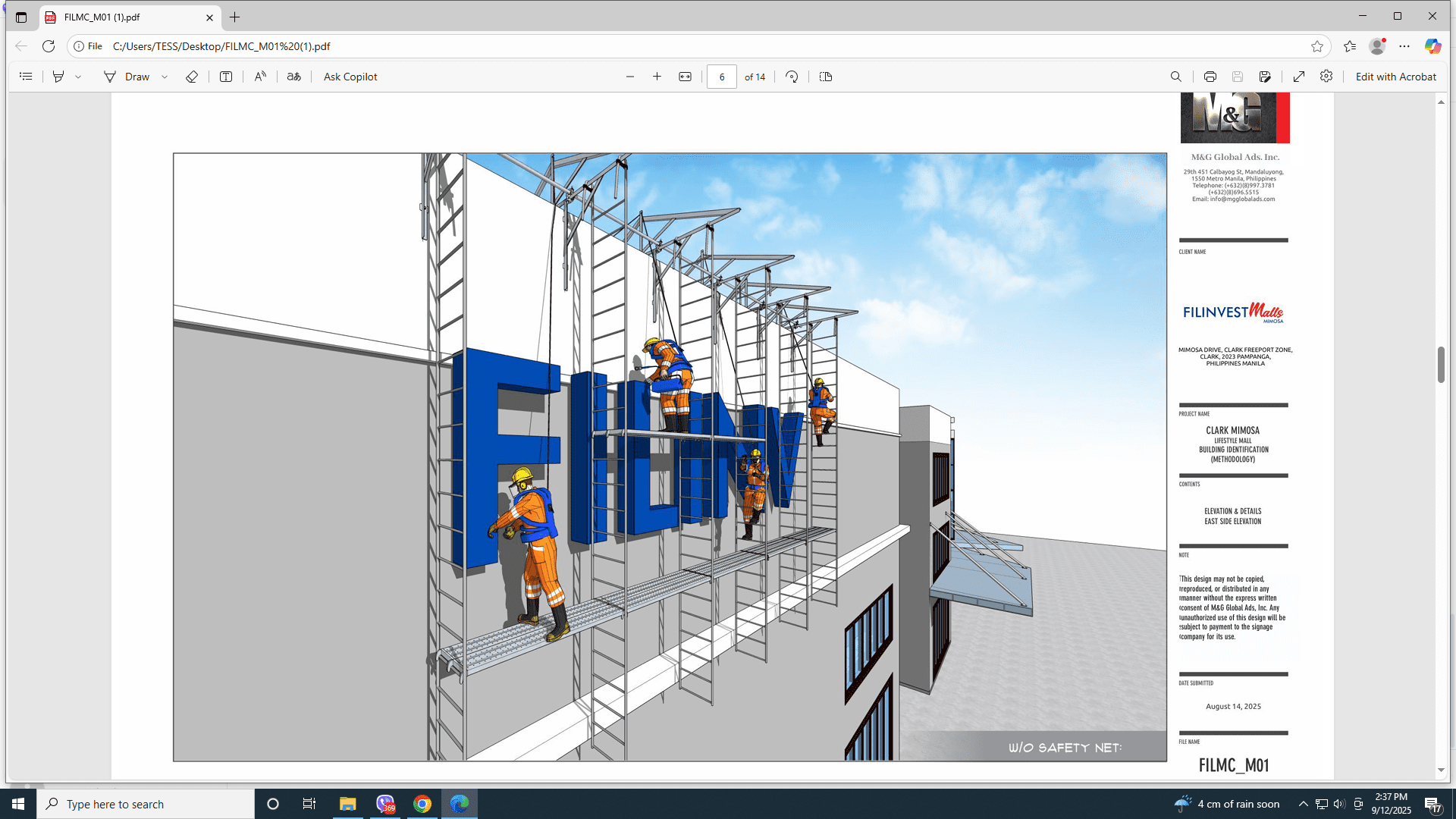

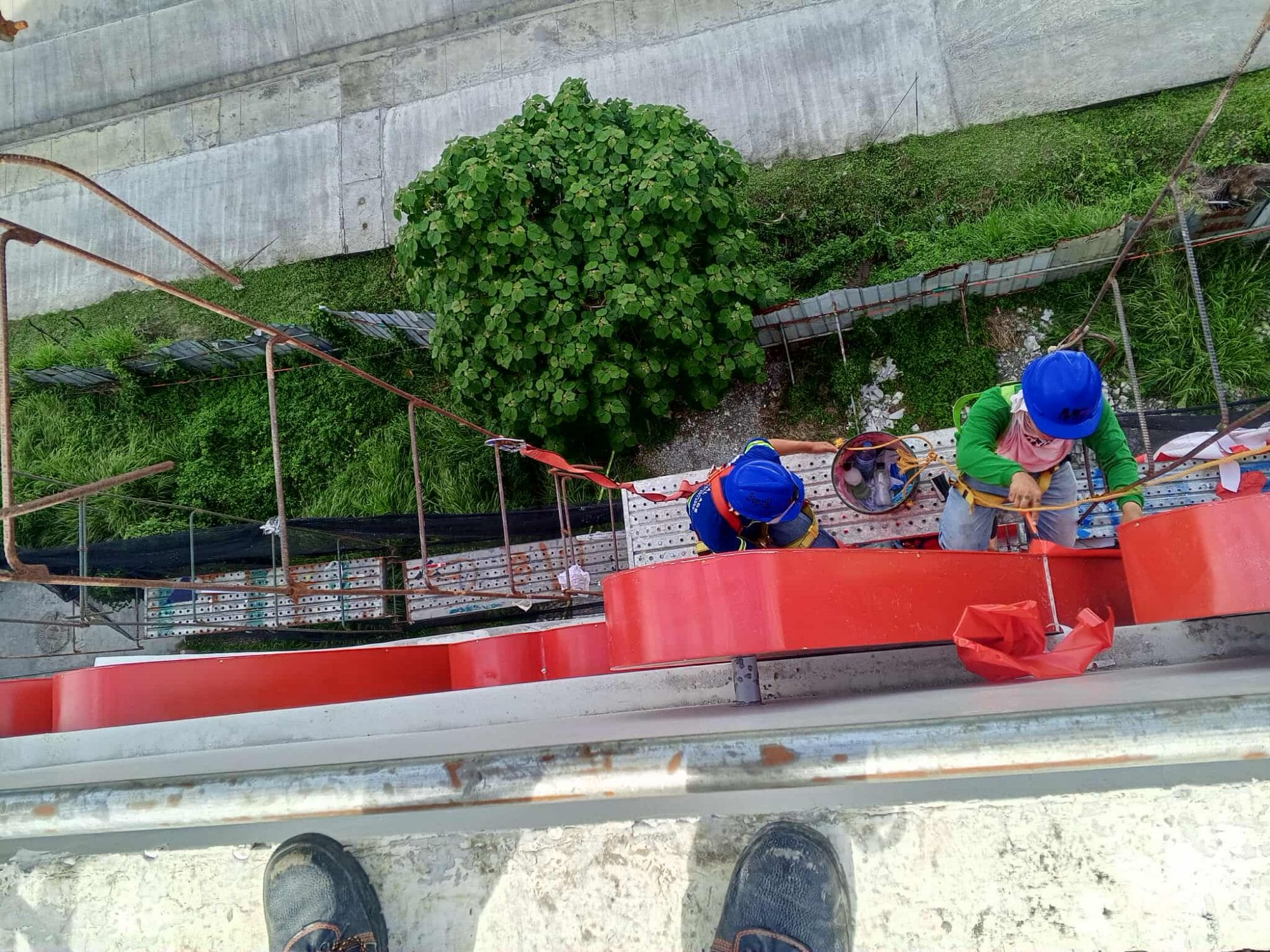

• Access: Suspended staging on parapet clamp system (no roof penetration), lifelines, full-body harnesses with double lanyards & tool lanyards.
• Permits: Work-at-height clearance, hot-work (if welding on brackets), electrical.

---

4) Survey, Layout & Dry-Fit

1. Control Line: Laser establish baseline + datum across elevation; tolerance ±3 mm.
2. Template: Paper/skin templates aligned; penetration marks for bracketry.
3. Dry-Fit: Rails pre-assembled & tagged; electrical routes pre-planned to PSU location.

---

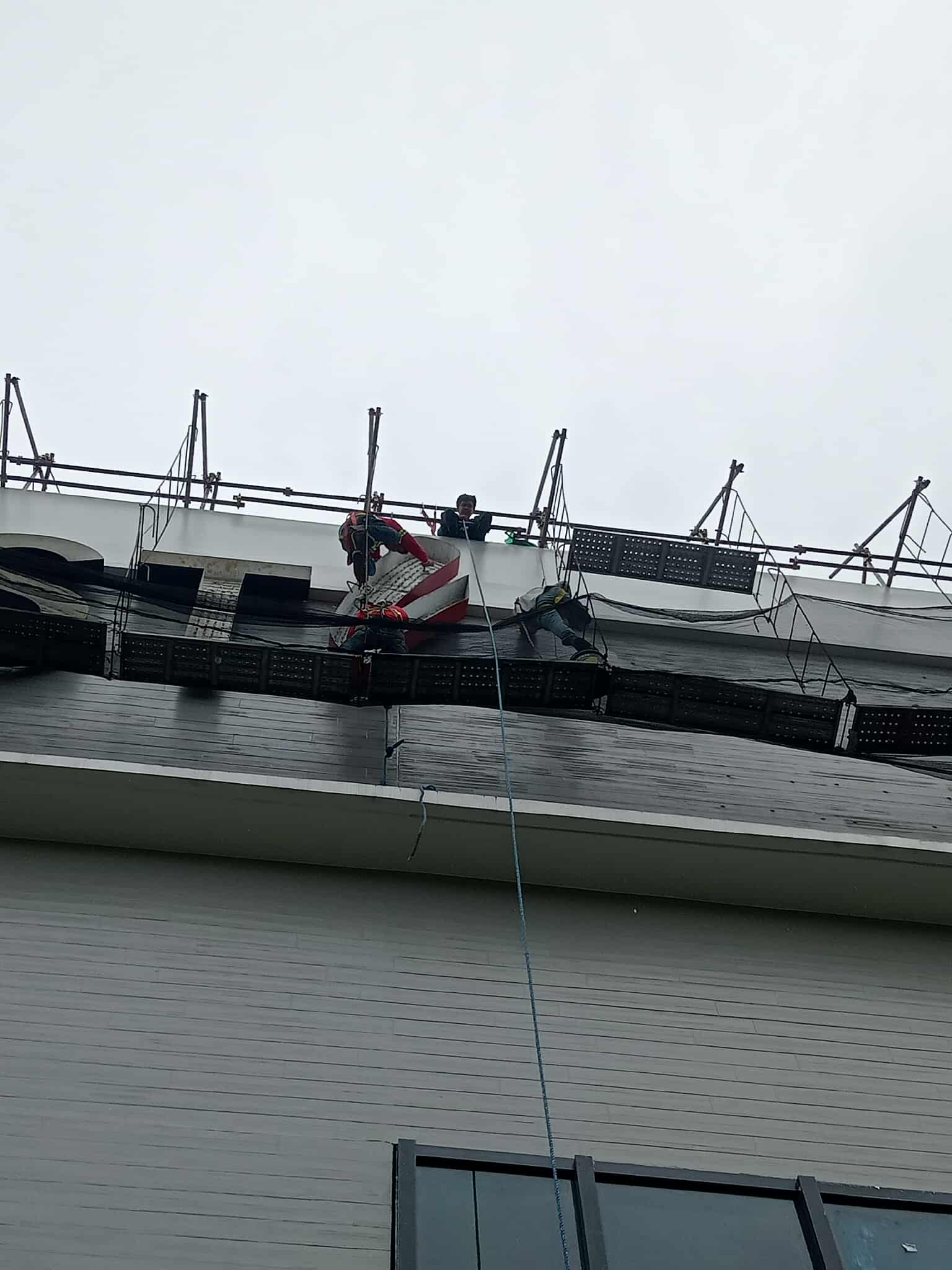

5) Hoisting & Bracket Installation

• Rigging: Certified slings/shackles; tag lines for wind control; exclusion zone below.

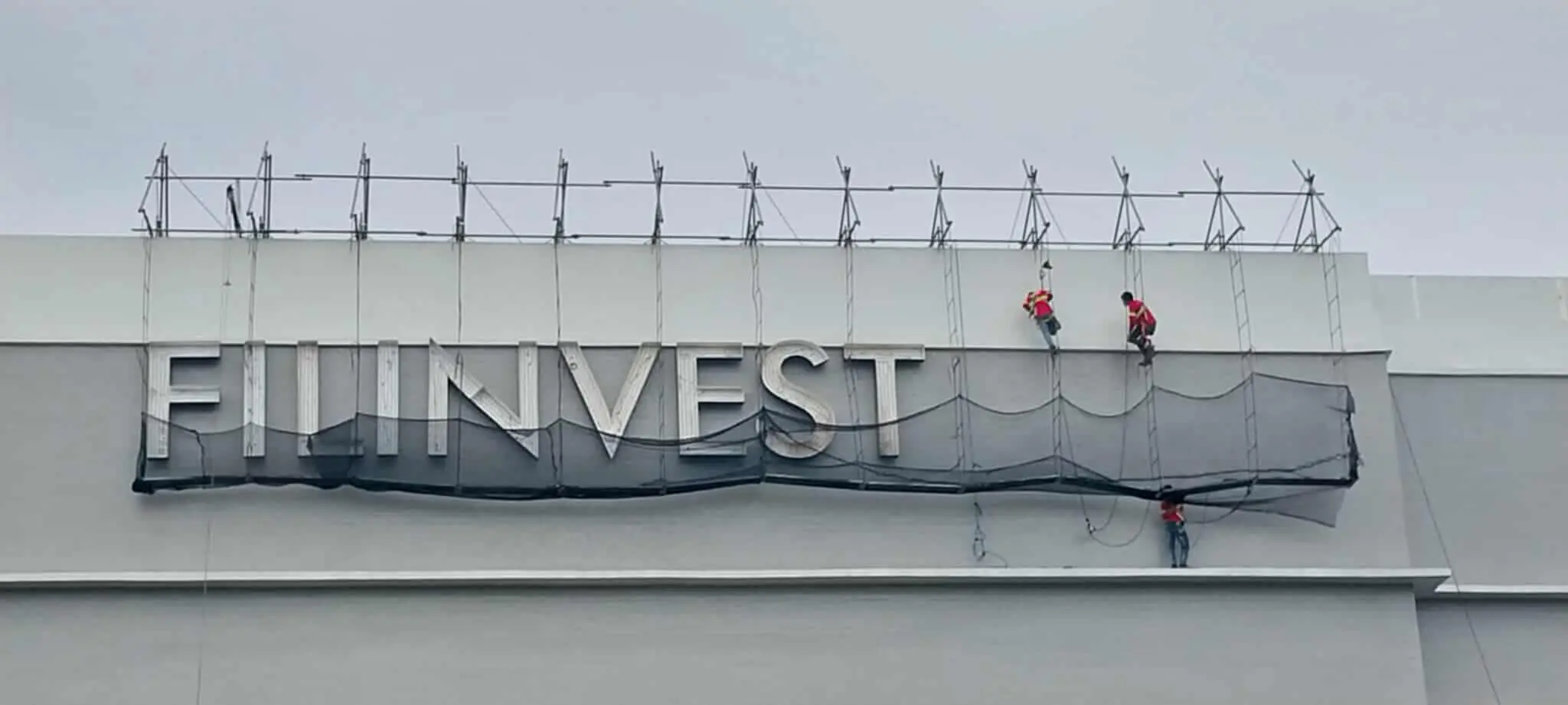

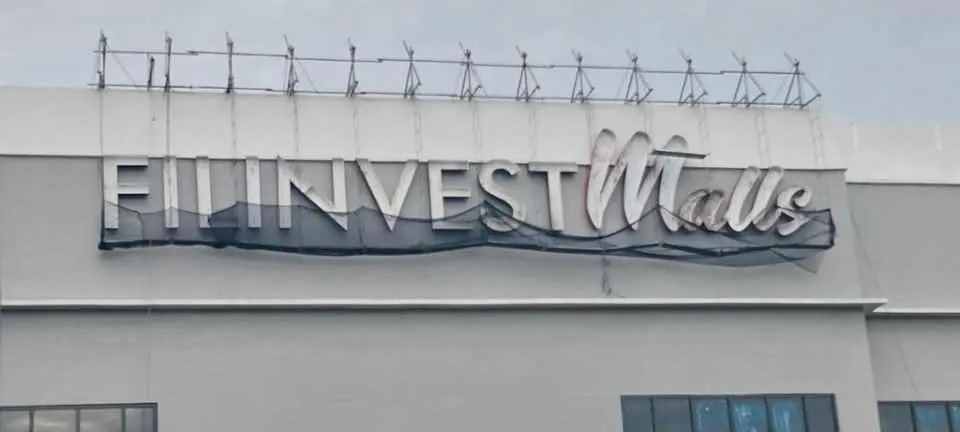

• Parapet Clamps: Set at spacing per calc; swivel clamps + GI braces; torque & witness-mark.
• Rails: Level, plumb, and expansion gaps observed.

---

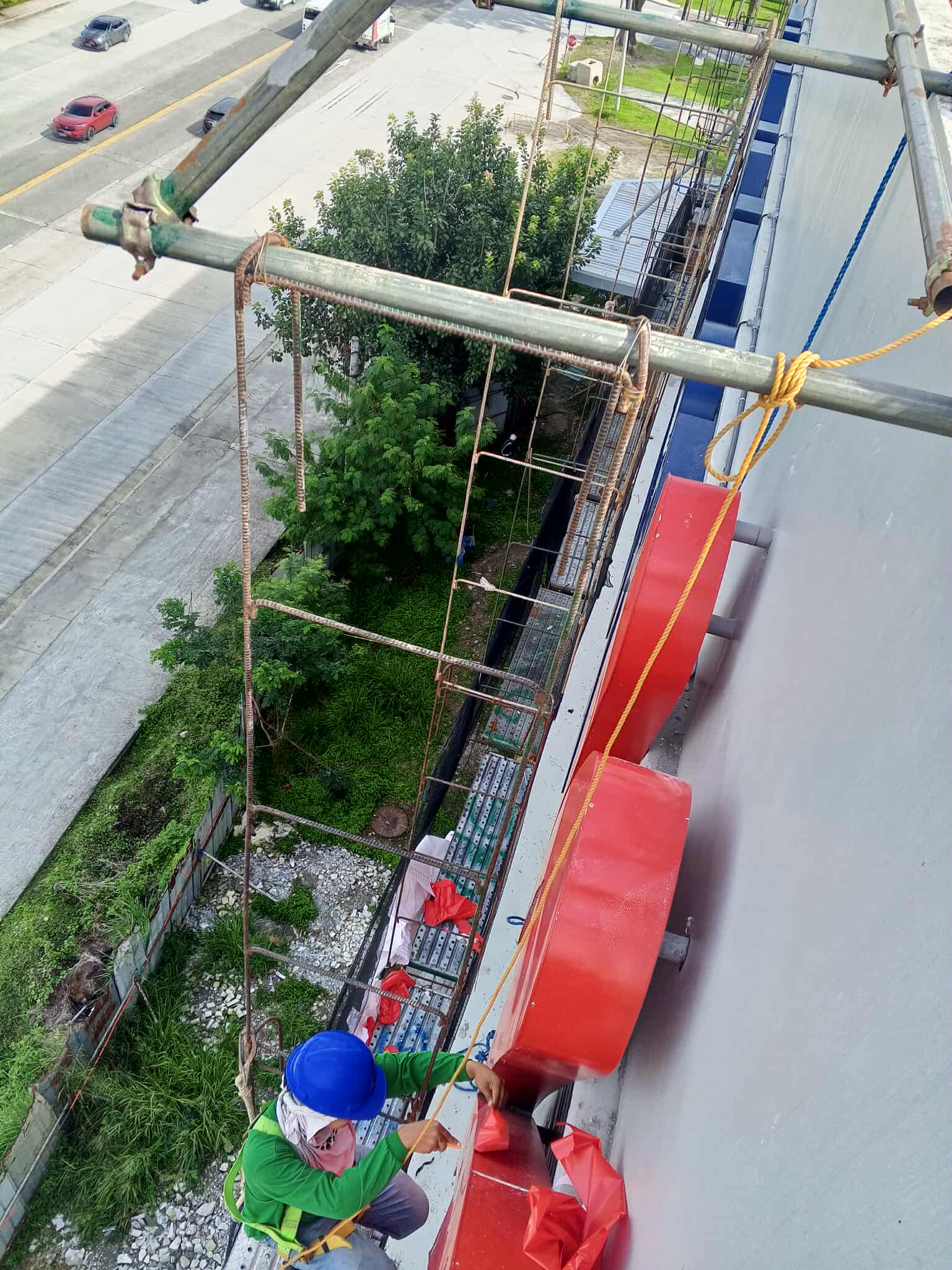

6) Letter Mounting & Electrical

1. Mount Letters: Slot/bolt to rails; verify stroke continuity & kerning alignment.

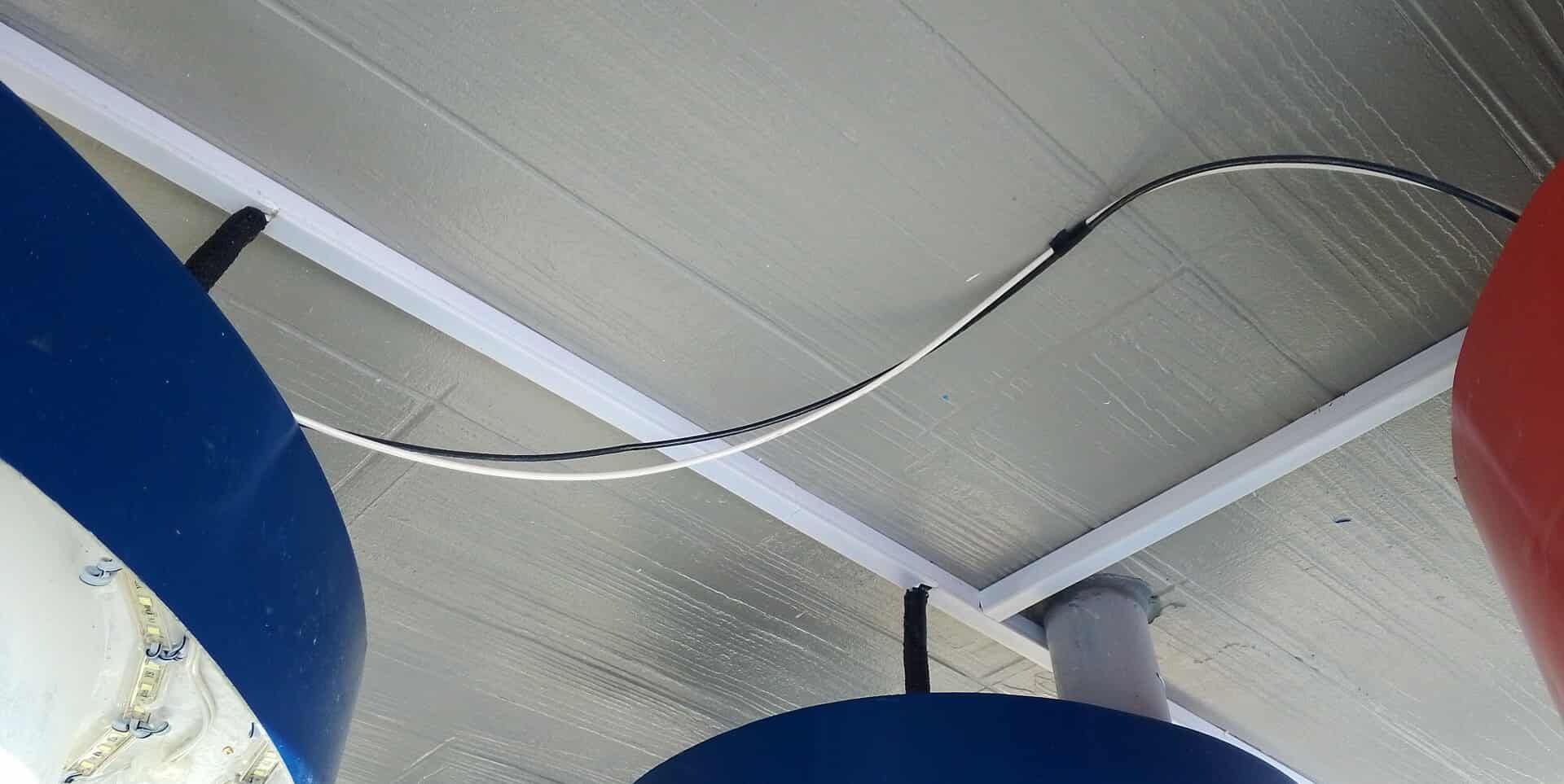

2. Wiring: Home-run low-voltage to PSUs; drip loops; UV-resistant conduit; separation from mains.
3. Sealing: Silicone perimeter where required; gaskets on penetrations.

---

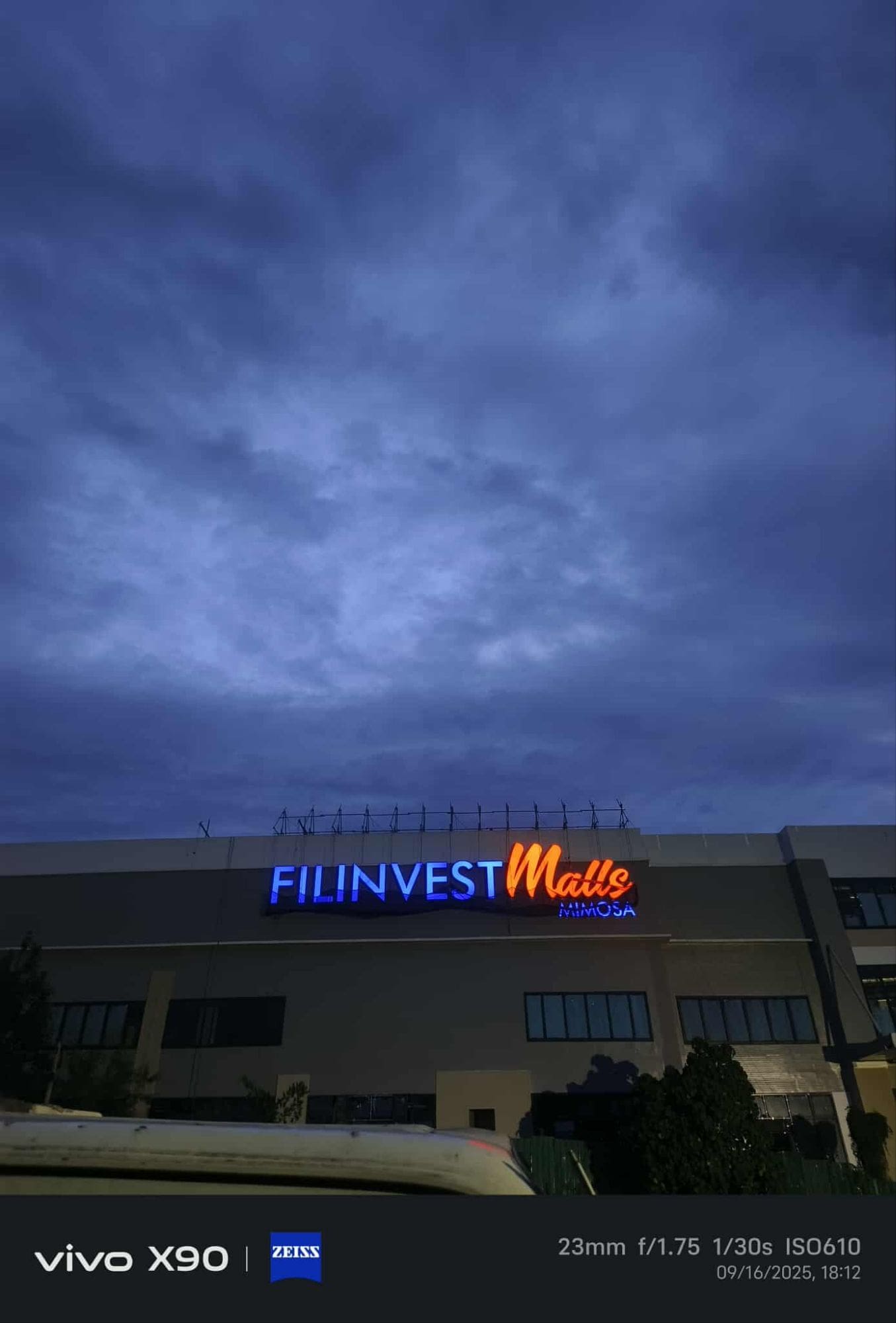

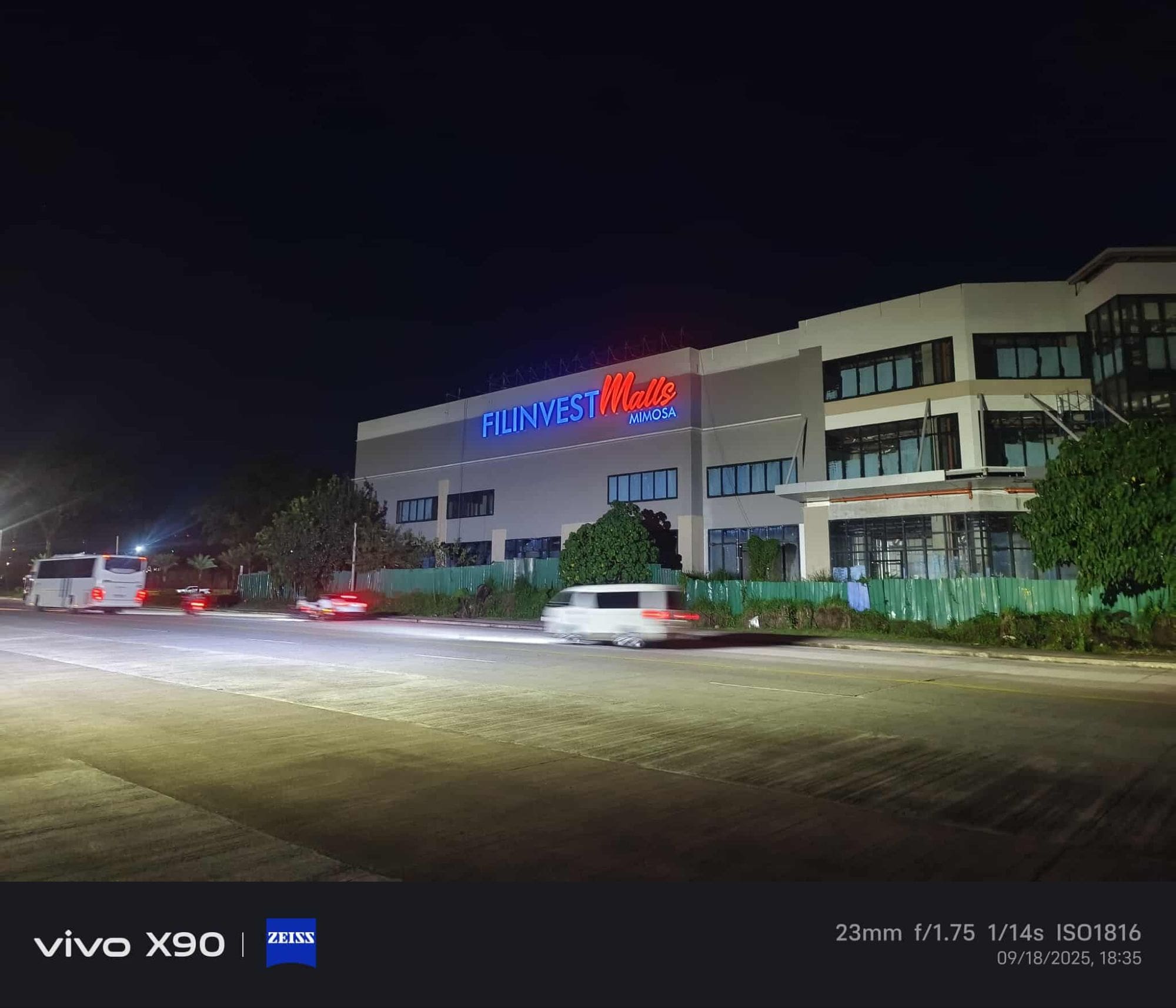

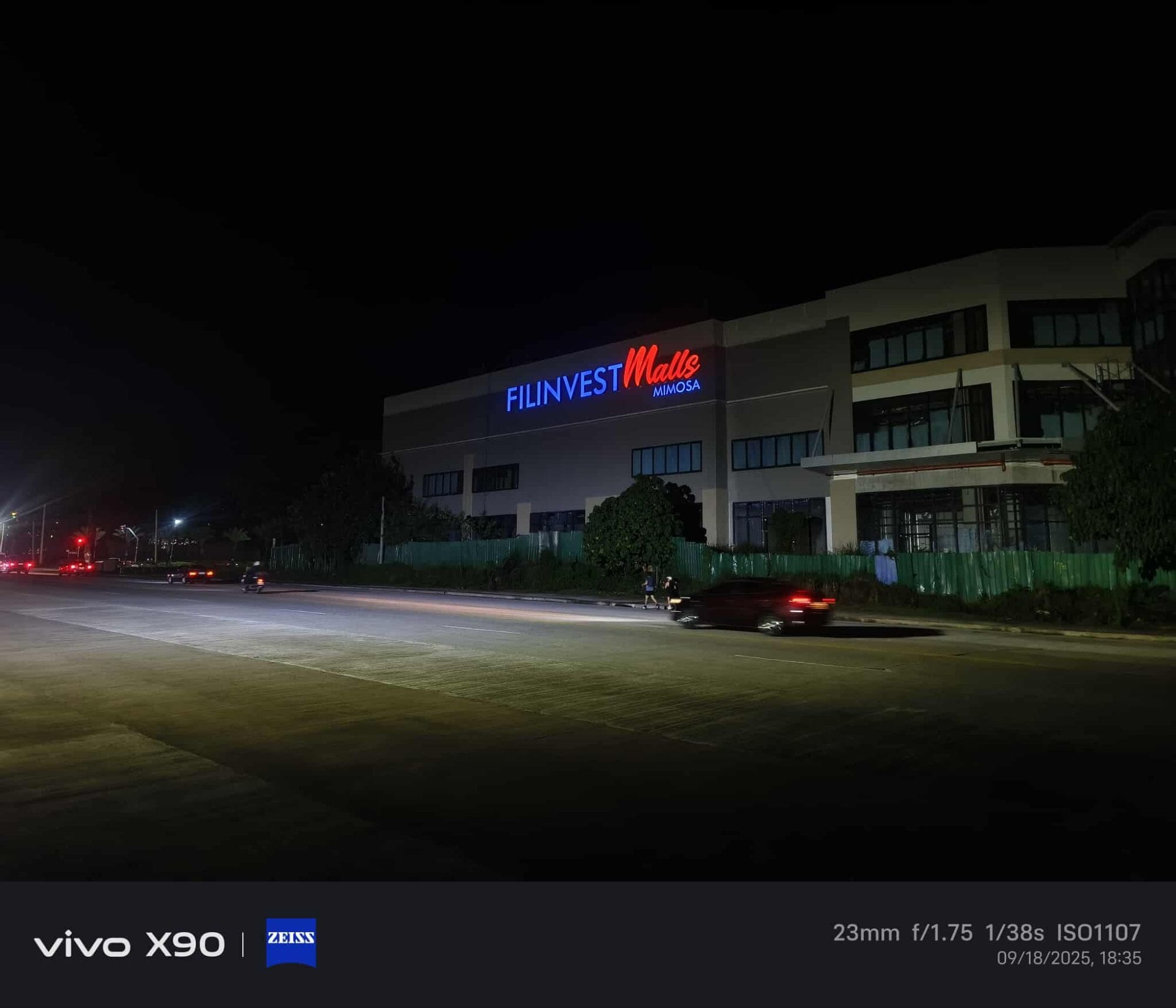

7) Testing, Commissioning & Night Aim

• Power-On Tests: Polarity, voltage drop (<5%), thermal check on drivers.

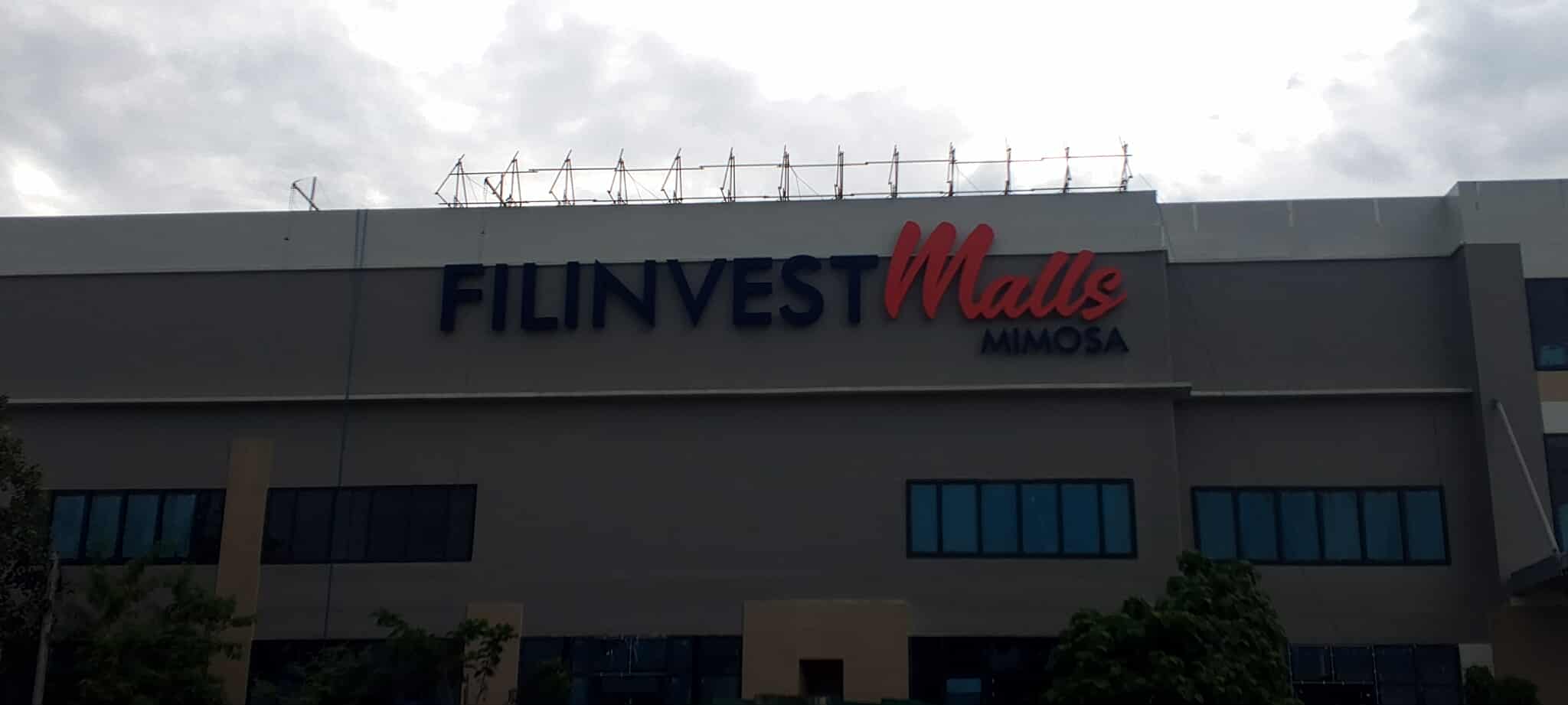

• Uniformity: Night-time inspection; dim hotspots; tweak module spacing if needed.
• Sign-Off: Punch list closeout, as-built markups, O&M handover.

---

Safety & Quality Controls

• Full PPE: harness, lanyards, helmets with chin strap, high-vis, gloves, eye protection.
• Lifelines: Independent from work line; anchor certification on record.
• Tool control: Tether all hand tools; toe-boards on platforms.
• Electrical: LOTO on supply; IP67 terminations; surge protection.
• Documentation: Daily toolbox talks, inspection logs, torque sheets, NCR/CAR workflow.

---

Equipment & Materials

• Suspended staging + fabricated parapet clamp system
• Laser levels, TIC/insulation meter, torque wrenches
• LED modules & PSUs (IP67), junction boxes, UV conduit
• Galv. rails & stainless fasteners (A2/A4)

---

Programme

• Engineering / approvals: 1–2 weeks
• Fabrication & QA: 1–2 weeks
• Mobilization & install: 3–7 days (weather-dependent)
• Testing & turnover: 1 day

---

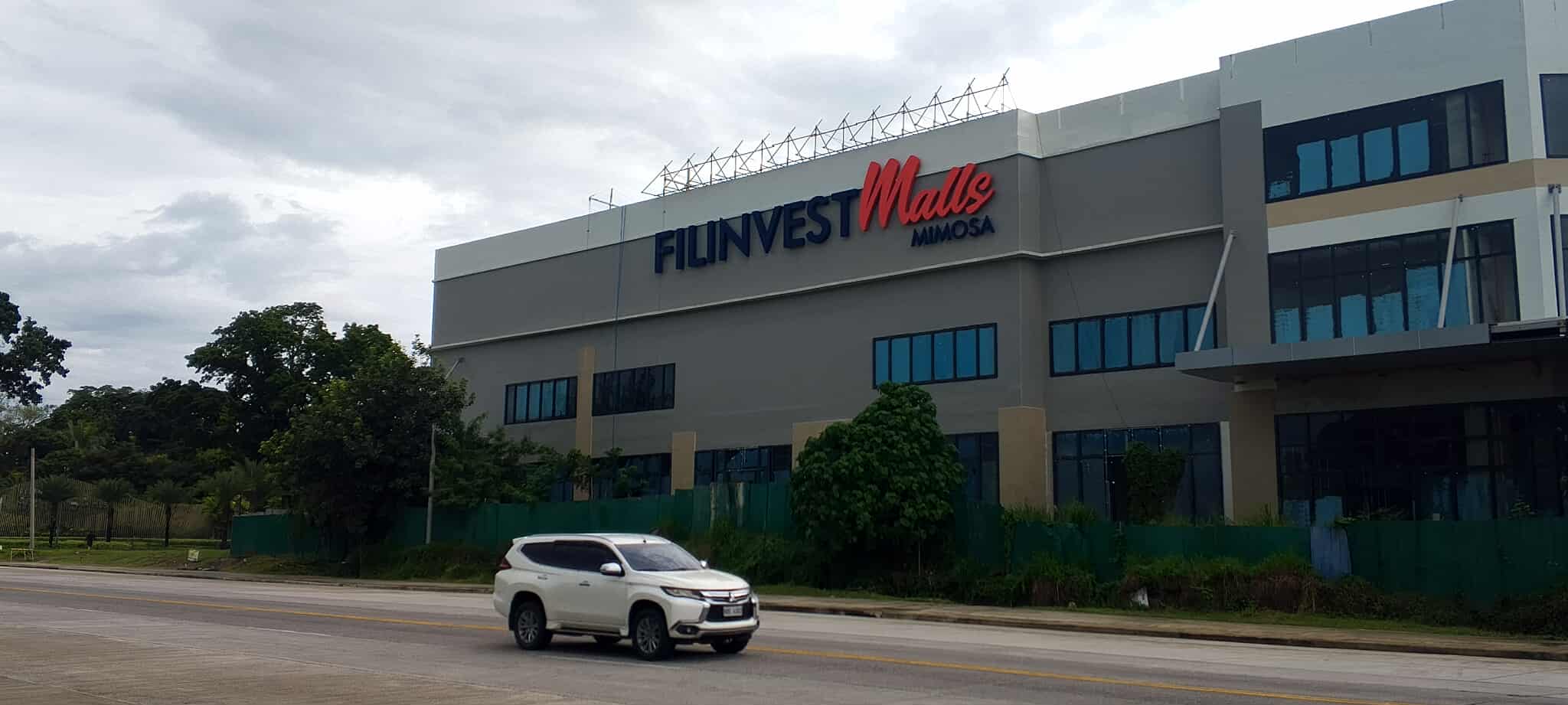

What This Project Proves

• Non-penetrative mounting that respects envelope warranties.
• High-elevation work done safely with disciplined rigging.
• Even illumination and clean kerning at architectural scale.
• World-class execution by M&G Global Ads installers—reliable, fast, audit-ready.

---

For Specifiers

• Mounting: Parapet-clamped suspended frame, no roof penetrations.
• Returns: Powder-coated aluminum; faces: acrylic; illumination: LED, IP67.
• Power: 230V supply to remote PSUs; low-voltage distribution in UV conduit.
• Warranty: 1-year workmanship; LED/PSU per manufacturer.
• Deliverables: Calculations, shop drawings, as-builts, O&M.

---
